Which type of O-Ring seal?
Match your seal with these 3 types:
Identify your seal by matching the parts highlighted in red.

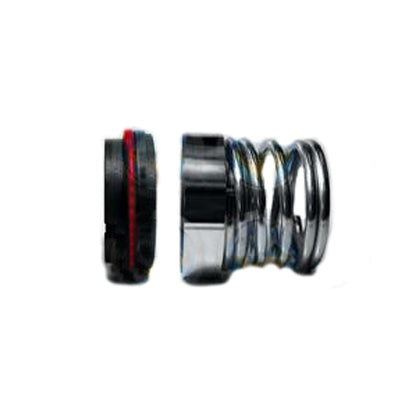

Single O-Ring Seat
DOES YOUR SEAL MATCH?
The stationary seal has a single o-ring seal.
If your seal matches this then your seal is a parallel spring seal type with a single o-ring seat.

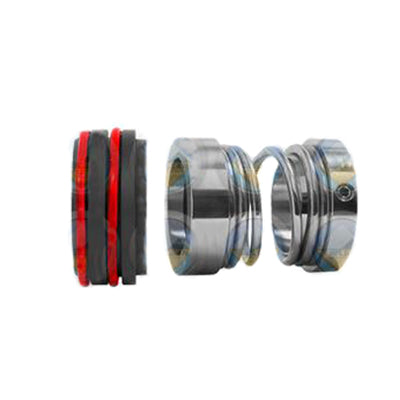

Double O-Ring Seat
DOES YOUR SEAL MATCH?
The stationary seal has a distinctive double o-ring seal.
If your seal matches this then your seal is a parallel spring seal type with a double o-ring seat.

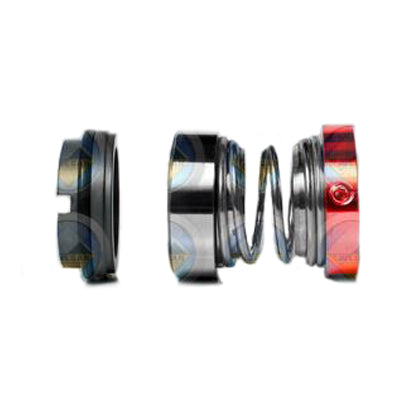

Clamp Ring Driven
DOES YOUR SEAL MATCH?
The rotary seal is driven by a clamp ring at the end of the directional coil.
If your seal matches this then your seal is a clamp ring driven parallel spring seal type.
What is an 'O'-Ring seal?
The shaft seal is an elastomer 'O'-Ring. An O-ring is a loop of elastomer with a round cross-section, designed to be seated in a groove and compressed during assembly between two or more parts, forming a seal at the interface.
Next steps?
Now you know the seal type you need, complete our form below to get a quote or ask any questions.
Order before 2pm to get same day dispatch next day delivery
Our Mechanical Seals range
We can supply replacement seals for most major manufacturers: Eagle Burgmann, John Crane, Roten/Uniten, AES, Alfa Laval, Grundfos, MTU, PAC-Seal, US Seal and more.
