Match your seal with these 2 types:
Identify your seal by matching the parts highlighted in red.
![](http://www.totallyseals.com/cdn/shop/files/flat-id-standard-sealing-face.jpg?v=1656086500&width=1500)

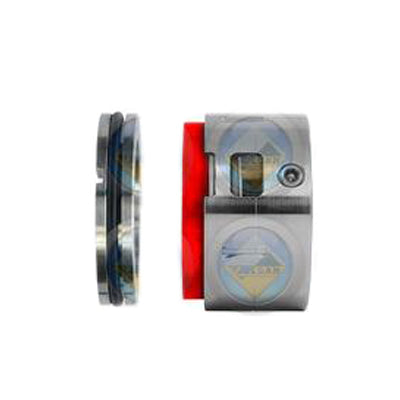

Flat ID Standard Sealing Face
DOES YOUR SEAL MATCH?
The ID of the sealing face is constant.
If your seal matches this then your seal is a multiple sprung design, with an o-ring seal and flat ID standard sealing face.
![](http://www.totallyseals.com/cdn/shop/files/step-down-balance-id-sealing-face.jpg?v=1656086527&width=1500)

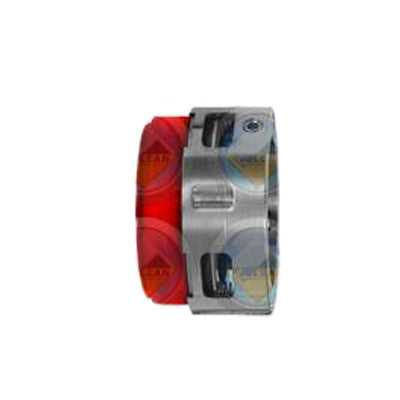

Step Down Balance ID Sealing Face
DOES YOUR SEAL MATCH?
The ID of the sealing face is stepped to a smaller face at the lapped end.
If your seal matches this then your seal is a multiple sprung design, with an o-ring seal and step down balance ID sealing face.
What is a multiple spring o-ring seal?
The shaft seal inside the multi-spring rotary is an elastomer 'O'-ring.They are commonly used in petrochemical or chemical applications. The multi sprung design allows an even face load to be applied over the face area and butt a number of compression springs.
Next steps?
Now you know the seal type you need, complete our form below to get a quote or ask any questions.
Order before 2pm to get same day dispatch next day delivery
