Match your seal with these 2 types:

Identify your seal by matching the parts highlighted in red.

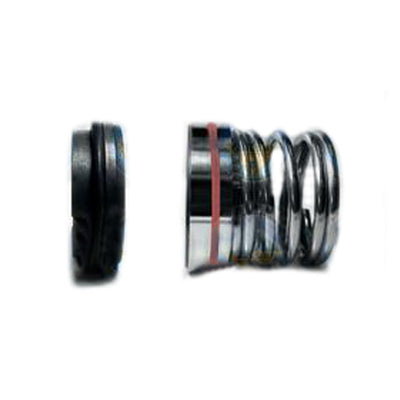

O-Ring Seal

The shaft seal is an elastomer o-ring.

This is my seal

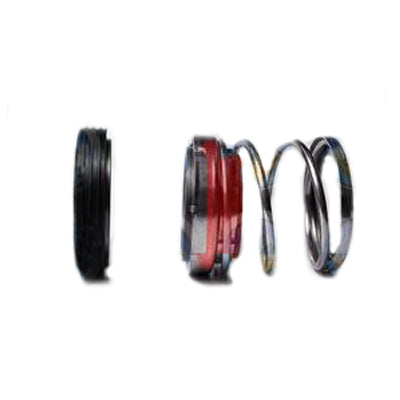

Diaphragm Seal

The shaft seal is an elastomer diaphragm.

This is my seal

What is a parallel spring?

The springs of this seal group are parallel to the shaft. There are two basic types; seals based around a elastomer diaphragm for the shaft seal, or based on an o-ring shaft seal. Parallel springs are recognisable by their single compression spring located behind the rotary seal head.

Our Mechanical Seals range

We can supply replacement seals for most major manufacturers: Eagle Burgmann, John Crane, Roten/Uniten, AES, Alfa Laval, Grundfos, MTU, PAC-Seal, US Seal and more.

View range
