Match your seal with these 2 types:
Identify your seal by matching the parts highlighted in red.
Inserted Face (Heat Shrink)
Does your seal match?
The sealing face is a very tight fit into the metal casing. It is heat shrunk in and fixed in place.
If your seal matches this then your seal has a conical spring and an inserted face.

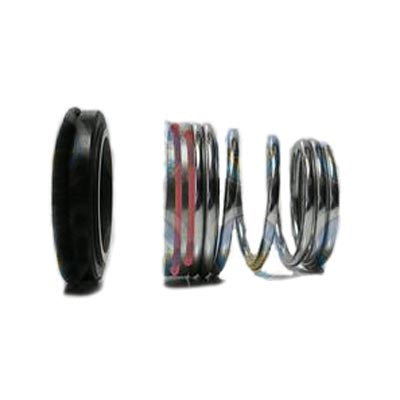

O-Ring Retained
Does your seal match?
The sealing face is held in position by elastomer o-rings.
If your seal matches then your seal has a conical spring and is o-ring retained.
What is an inserted face (heat shrink) & o-ring retained seal?
The sealing face is a separate ring of material, usually CAR, SIC or TC, that is not part of a solid, monolithic head but is inserted and securely held with a heat-shrink process, or is retained by an o-ring.
Next steps?
Now you know the seal type you need, complete our form below to get a quote or ask any questions.
