Which type of Conical Spring seal?

Match your seal with these 2 types:

Identify your seal by matching the parts highlighted in red.

Inserted Face (Heat Shrink) or O-Ring Retained

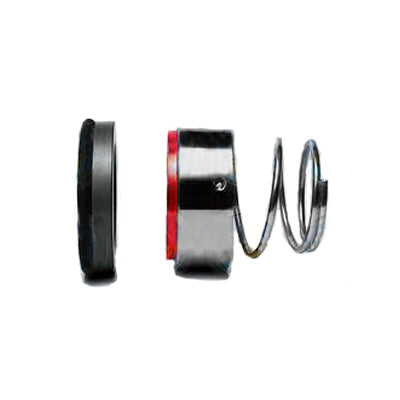

The sealing face is a separate ring of material, usually CAR, SiC or TC that is not part of a solid monolithic head but is inserted separately and held in place with heat shrink or an o-ring.

This is my seal

Monolithic Head

The rotary sealing head is made of one single solid piece of material. The monolithic seal head provides enhanced heat dissipation away from the seal faces.

This is my seal

What is a conical spring?

These seals have a conically shaped spring, to secure the head and grip the shaft. They have o-ring mounted faces. There are a variety of different comical spring seals, so we focus on identifying the different types of seal heads in order to guide you to the correct seal.
